HOSPITALS

HOSPITALS

Project photos are of St. Elizabeth Hospital, Appleton, WI. While employed at Flad & Associates of Wisconsin I had the opportunity to be project engineer for this $27M concrete framed building addition to this hospital. We performed preliminary system analysis and final column and caisson foundation designs.

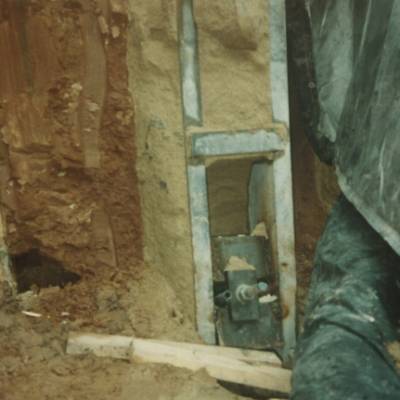

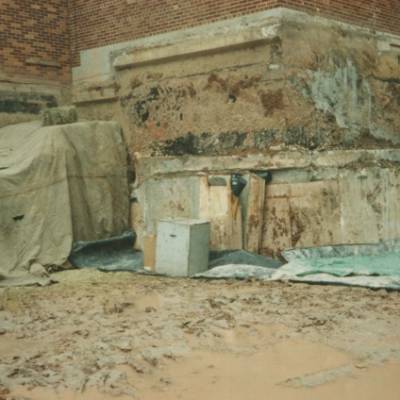

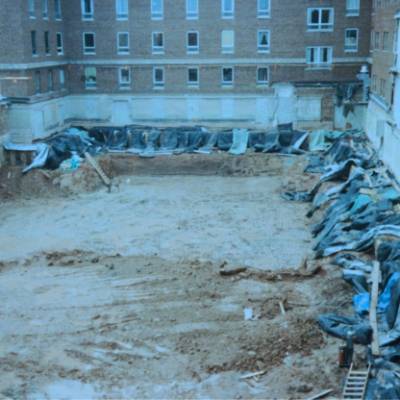

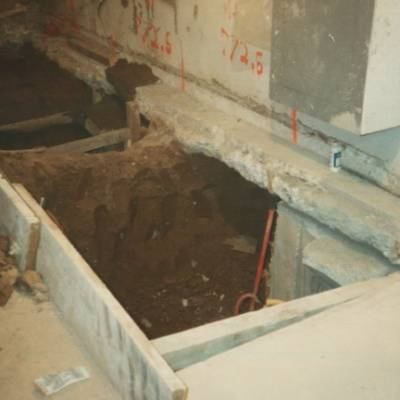

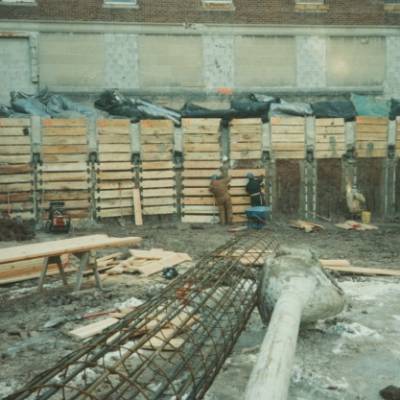

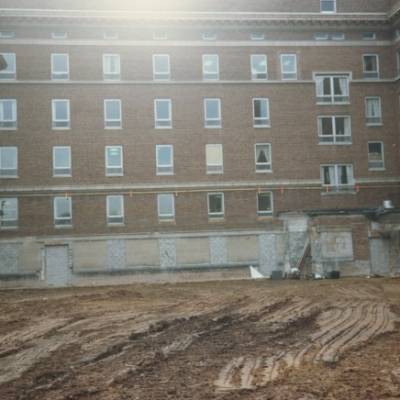

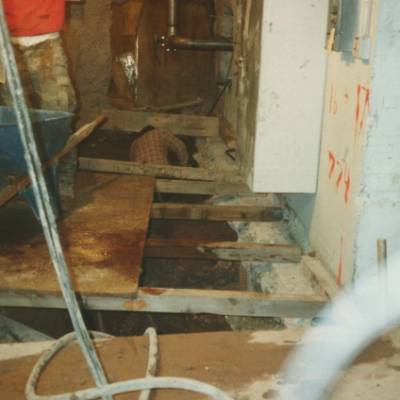

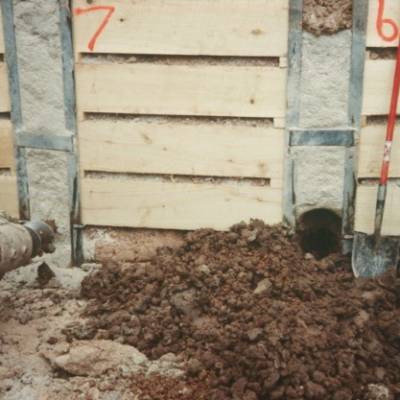

Excavation and Earth Retention

Caisson Installation

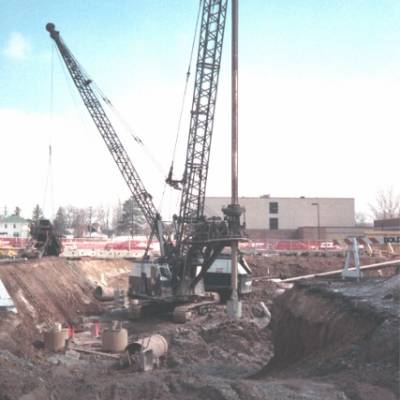

Fig. 11. Deep foundations utilized drilled piers.

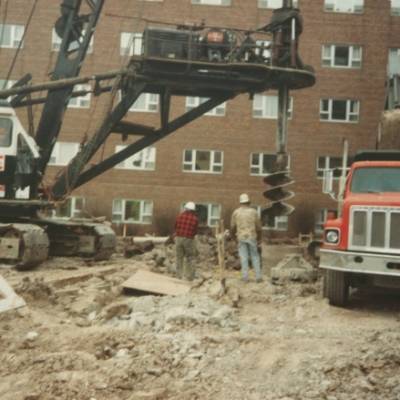

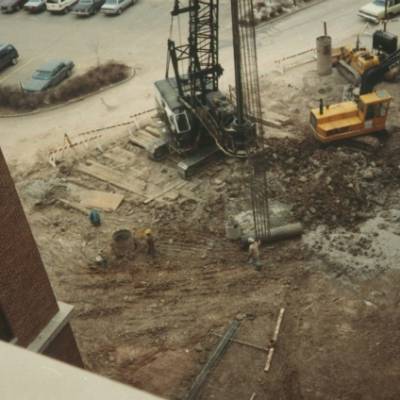

Fig. 12. Drilled pier installation.

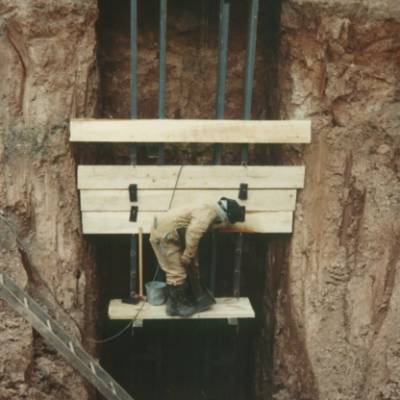

Fig. 13. Setting rebar cage in drilled pier.

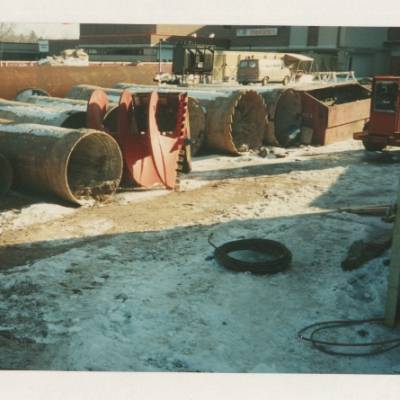

Fig. 14. Drill bits and shafts used to install drilled piers.

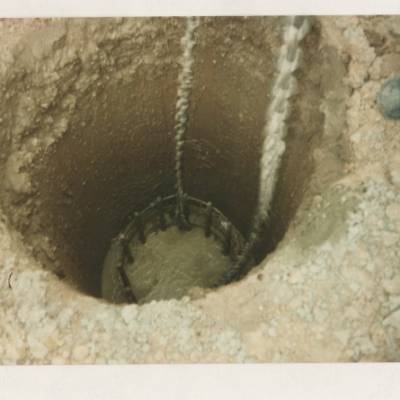

Fig. 15. Drilled pier after concrete has been placed.

Back to top

Foundations

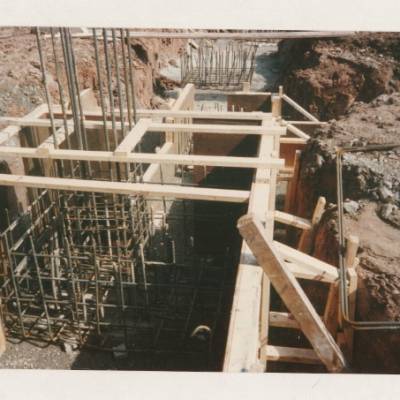

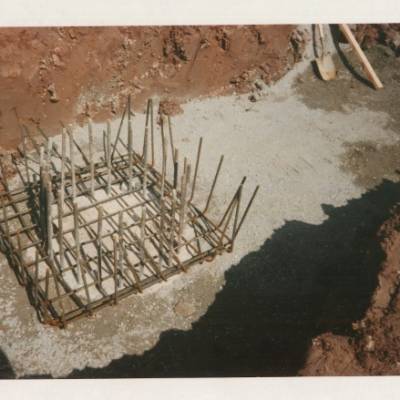

Fig. 16. Foundations - pier caps.

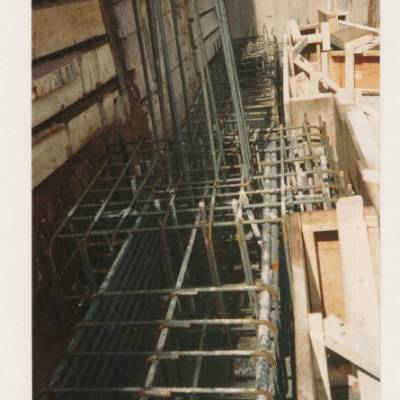

Fig. 17. Foundations - pier caps and grade beams.

Fig. 18. Foundations - pier caps and grade beams.

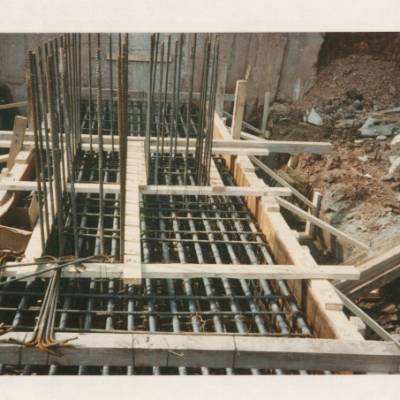

Fig. 19. Foundations - pier caps and grade beams.

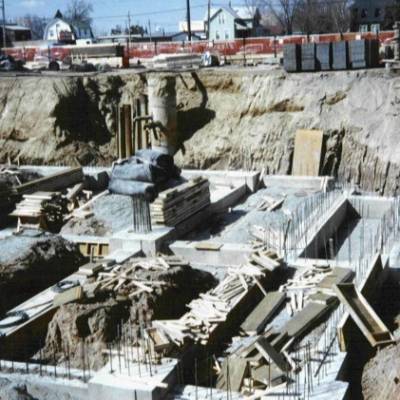

Fig. 20. Foundations - pier caps and grade beams.

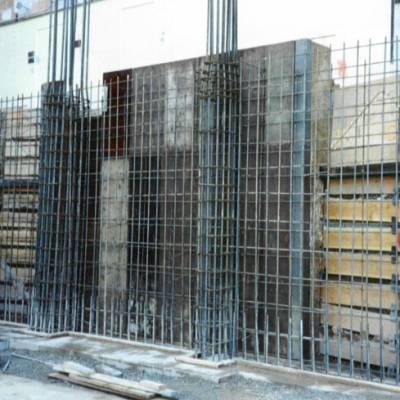

Fig. 21. Foundations - pier caps, grade beams and basement walls.

Back to top

Floor Framing

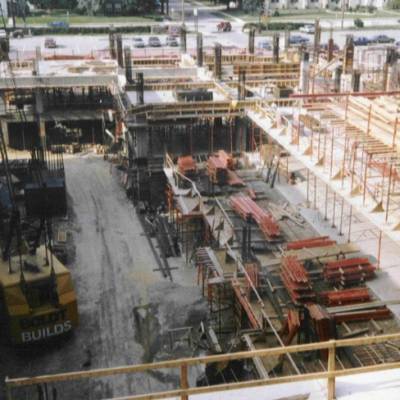

Fig. 22. Floor framing system - flat slab with drops.

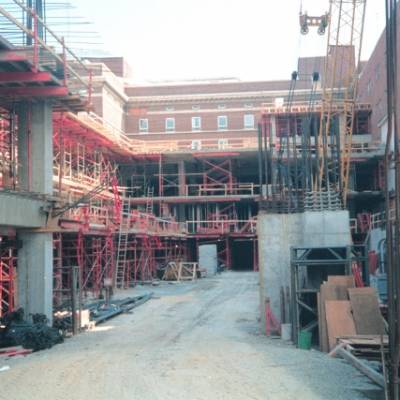

Fig. 23. Concrete framing systems - beam and slab and flat slab with drops.

Fig. 24. Concrete framing systems - beam and slab and flat slab with drops.

Back to top

Completed Photos

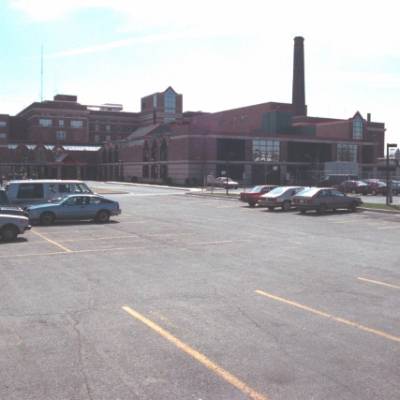

Fig. 25. Emergency entrance and physical plant additions.

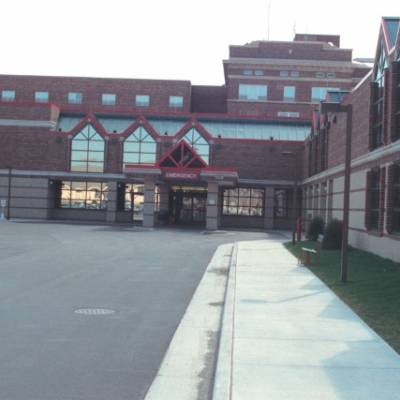

Fig. 26. Emergency entrance.

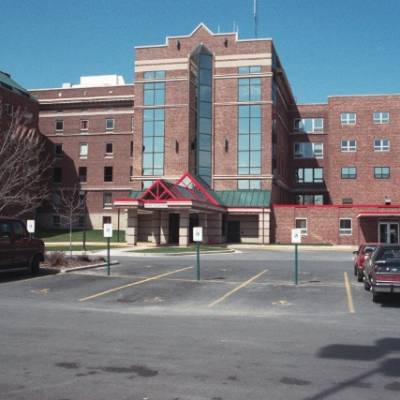

Fig. 27. New main entrance and reception area addition.

RPS STRUCTURAL ENGINEERING, LLC © 2023
